Auto Pipe Duct 3 Line HVAC Production Machine
LMM-DUCTING-06
Price:
IDR 320.000.000
Gallery
Machine
Ducting
10
Views
2026
Model Year
6
Features
Overview

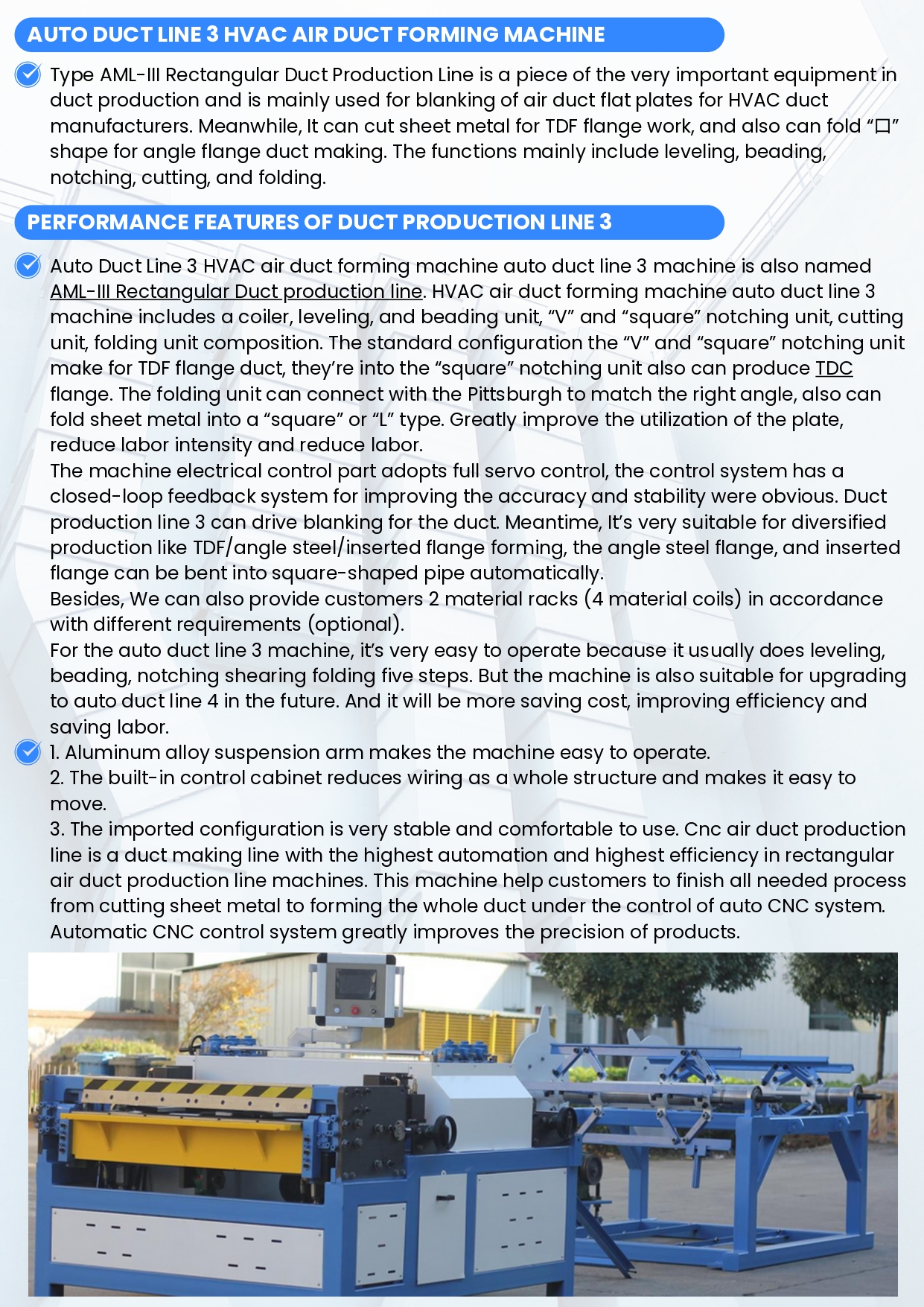

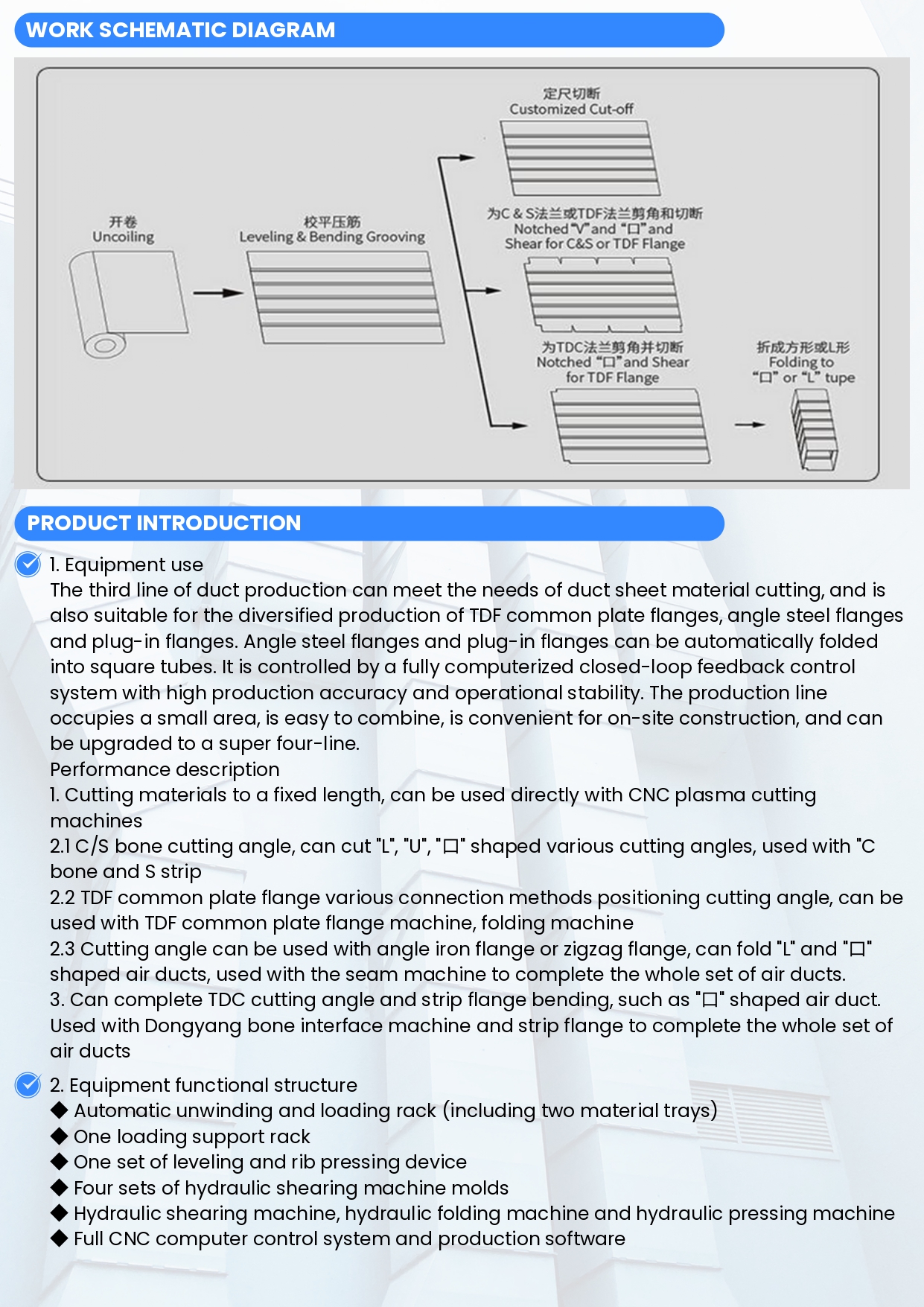

An auto duct production line is an integrated automated machine system used to quickly and efficiently produce rectangular ducting. This machine straightens, levels, beads, cuts, folds, and forms flanges from metal plate (galvanized steel) in a single production line.
Key Features

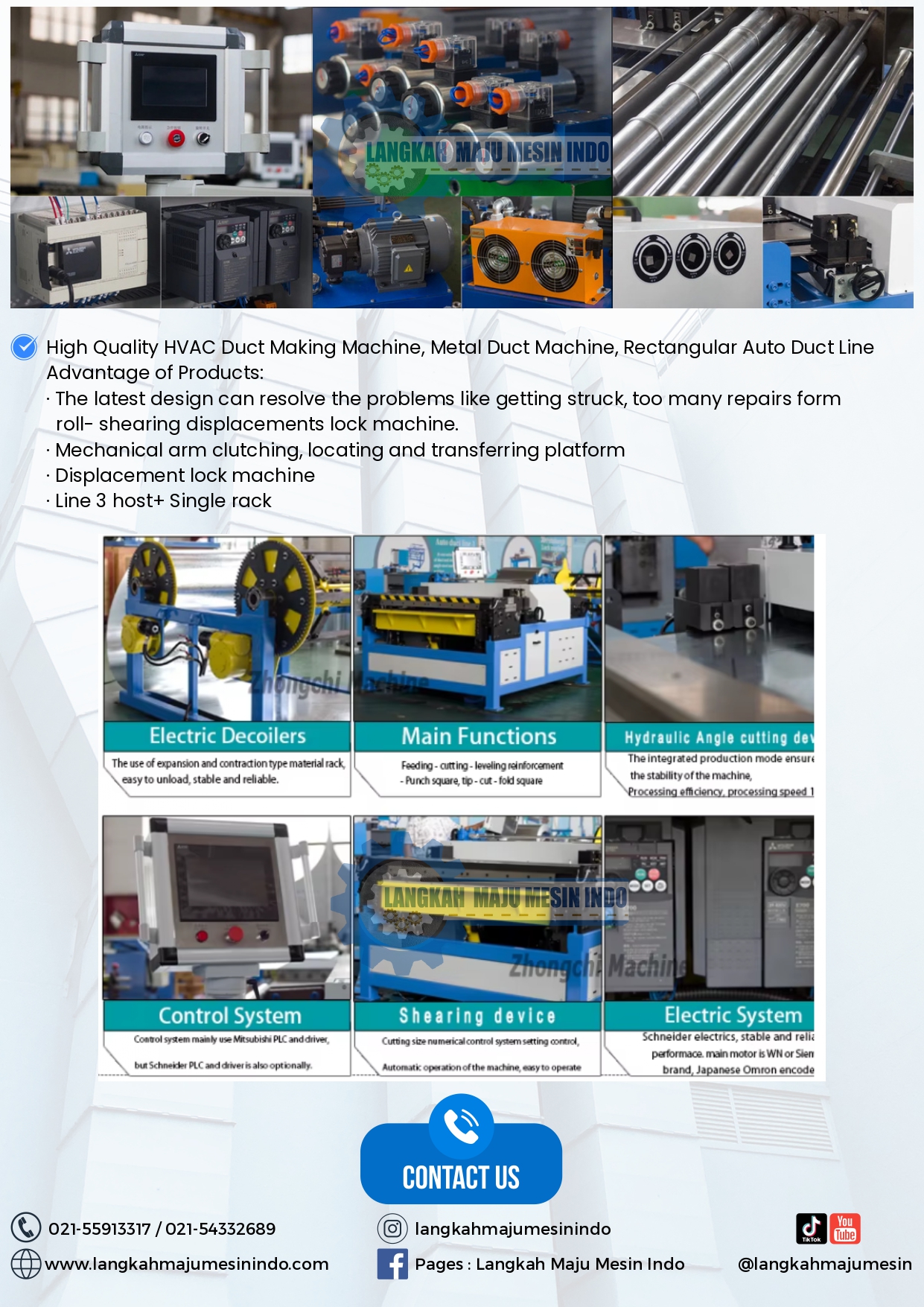

Automatic unwinding and loading rack (including two material trays)
One loading support rack
One set of leveling and rib pressing device
Four sets of hydraulic shearing machine molds
Hydraulic shearing machine, hydraulic folding machine and hydraulic pressing machine
Full CNC computer control system and production software
Key Specifications
Processing Coil Thickness:
0.5 - 2.0 mm
Applicable Roll Width:
1500 mm
Minim Side Length:
150 mm
Motor Power:
8.5 + 3 KW
Price
IDR 320.000.000
*Price may vary based on configuration and location

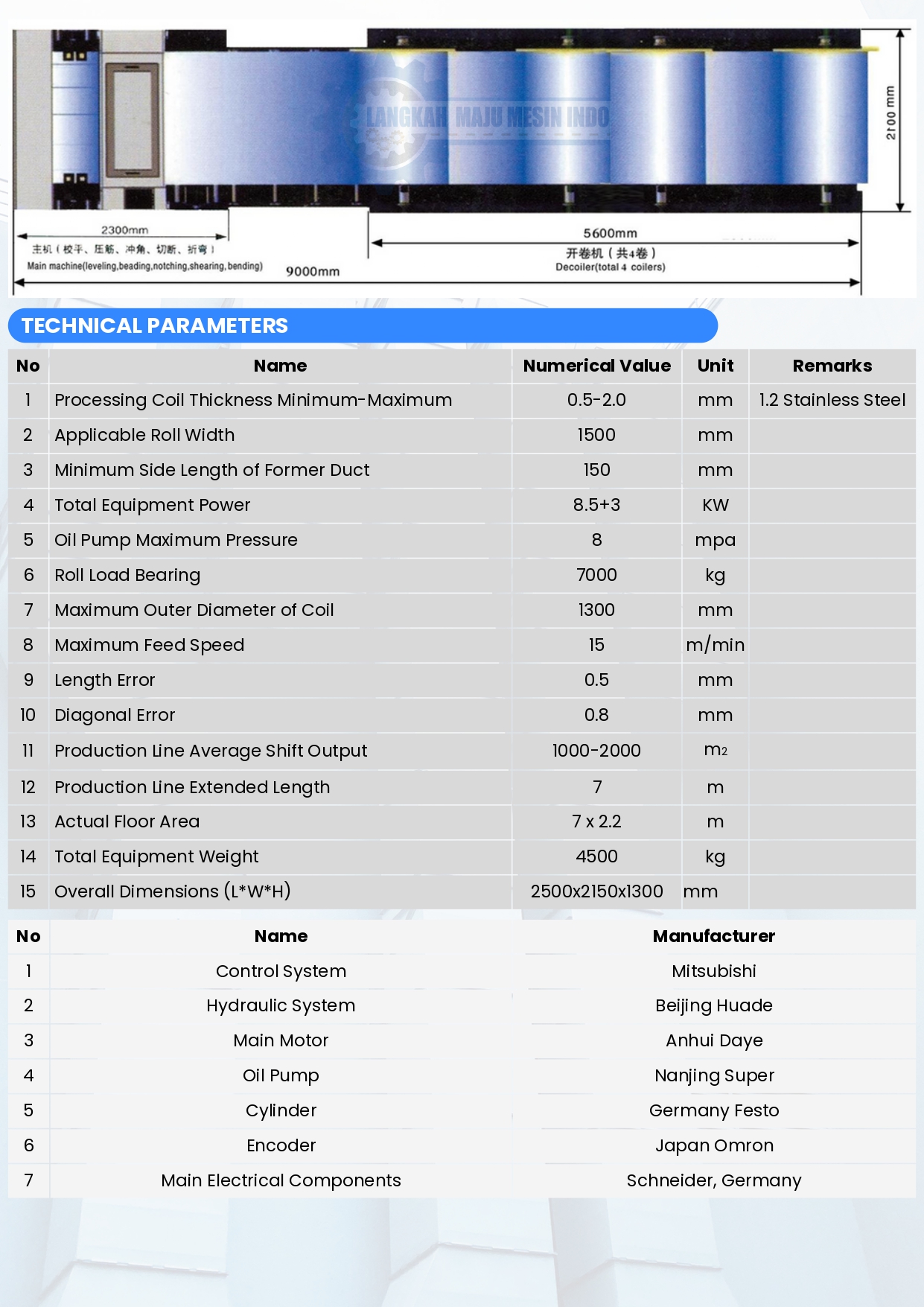

Technical Specifications
Detailed performance metrics and capabilities
Processing Coil Thickness
0.5 - 2.0 mm
Applicable Roll Width
1500 mm
Minim Side Length
150 mm
Motor Power
8.5 + 3 KW
Roll Load Bearing
7000 Kg
Actual Floor Area
7 x 2.2 m
Total Equipment Weight
4500 Kg
Dimensions
2500 x 2150 x 1300 mm
