HVAC TDF Ducting Common Plate Flange Machine - Mesin Common Flange Ducting
LMM-DUCTING-03
Price:
IDR 75.000.000
Featured
Gallery
Machine
Ducting
172
Views
2025
Model Year
5
Features
Overview

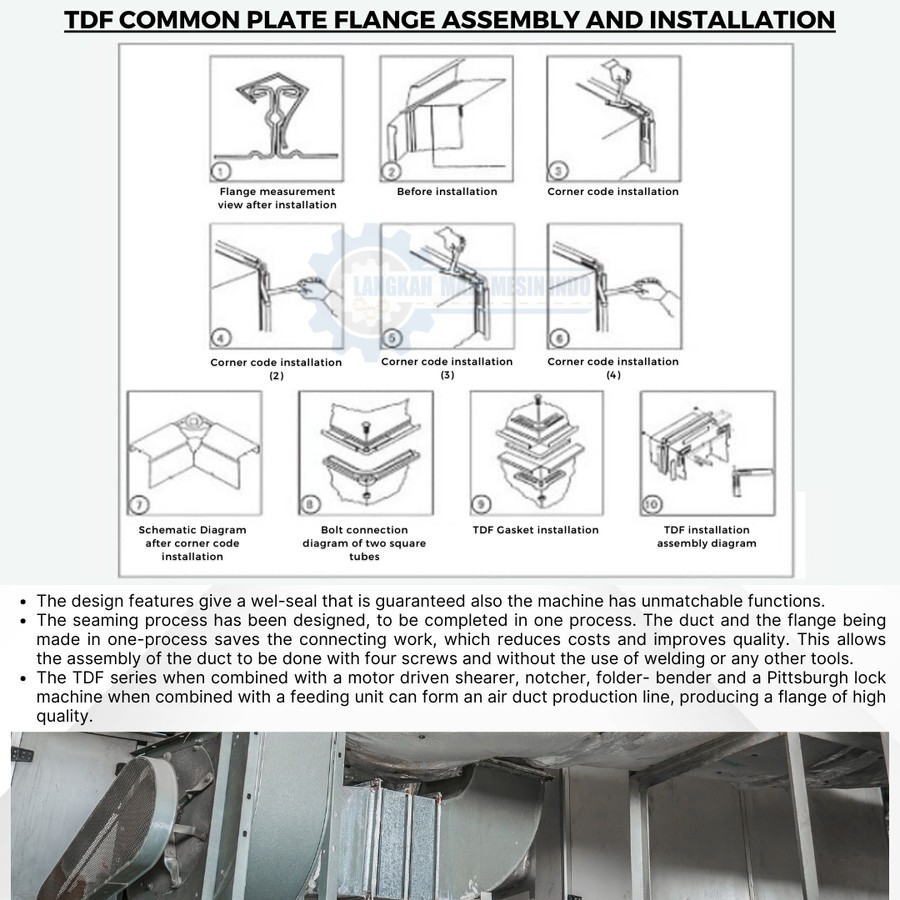

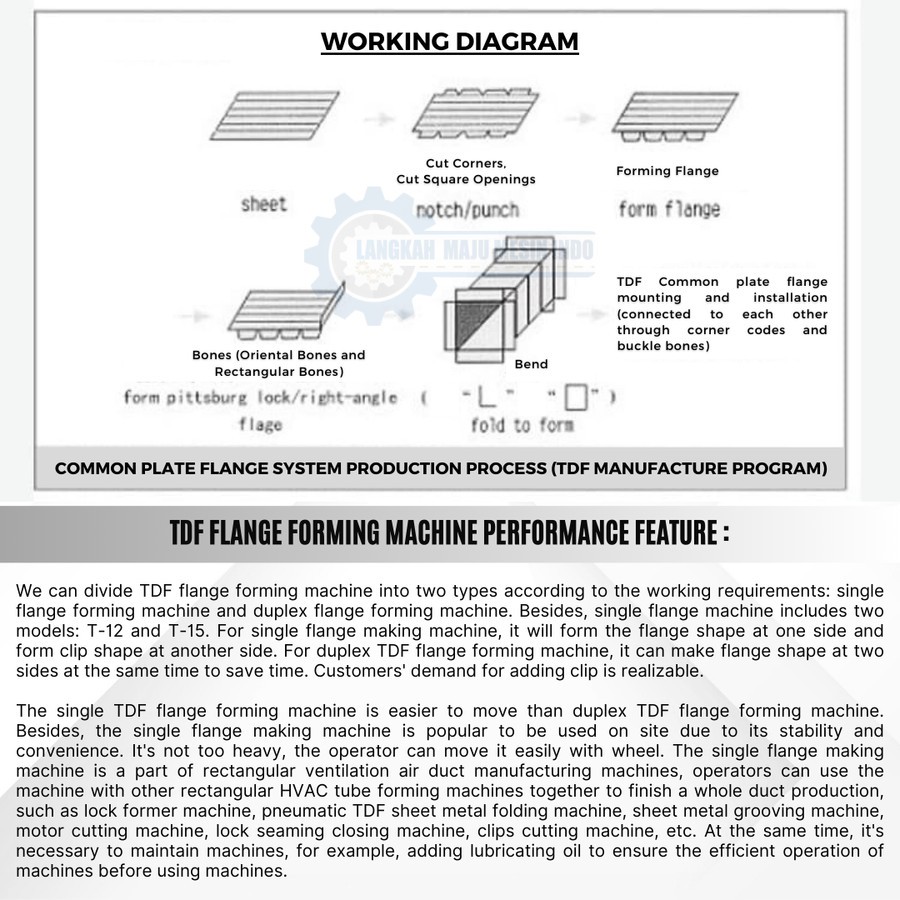

The TDF (Transverse Duct Flange) ducting machine is an industrial tool used to automatically form flanges (connectors) directly onto the ends of galvanized/iron ducting plates. This machine processes the plate edges into precise flange shapes, allowing for four-bolt connections between ducts without separate connectors, thus saving material and speeding up installation.

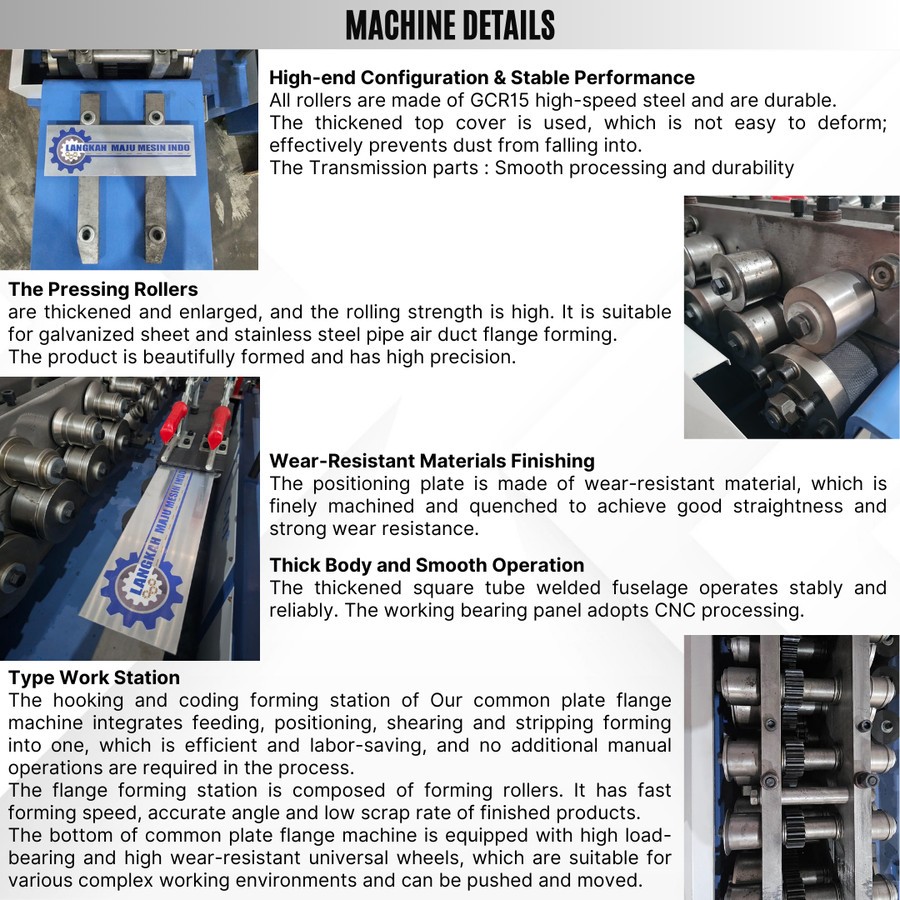

Key Features
All rollers are made of GCR15 high-speed steel and are durable
The pressing rollers are thickened and enlarged, and the rolling strength is high.
The positioning plate is made of wear-resistant material
Thick body and smooth operation
It has fast forming speed, accurate angle and low scrap rate of finished products

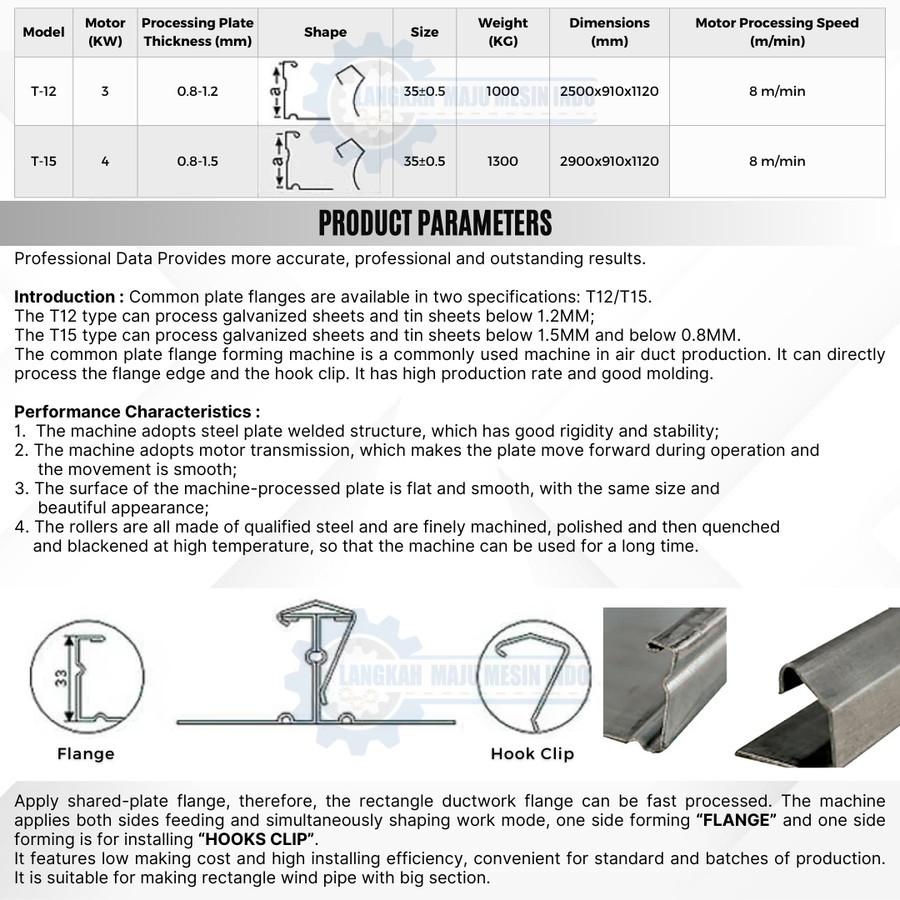

Key Specifications
Model:
T-15
Dinamo Motor:
4 KW
Processing Thickness:
0.8-1.5mm
Weight:
1300 Kg
Price
IDR 75.000.000
*Price may vary based on configuration and location
Technical Specifications
Detailed performance metrics and capabilities
Model
T-15
Dinamo Motor
4 KW
Processing Thickness
0.8-1.5mm
Weight
1300 Kg
Motor Speed
8 m/min
Dimensions
2900 x 910 x 1120 mm
