Mesin Drlling Milling ZX32G / Drilling and Milling Machine
LMM-MILLINGBORFRAIS-02
Price:
IDR 35.000.000
Gallery
Machine
Bubut
10
Views
2026
Model Year
4
Features
Overview
The ZX32G is a benchtop drilling and milling machine designed for precision metalworking in small to medium-sized workshops. It combines drilling, face milling, and milling functions.
Key Features
Flexible Spindle Head
Rugged Construction
Precision Control
Gear Transmission
Key Specifications
Maximum Drilling Diameter:
32mm
Maximum Face Milling Capacity:
63mm
Maximum Vertical Milling Capacity:
20mm
Working Desk Size:
700*180mm
Price
IDR 35.000.000
*Price may vary based on configuration and location

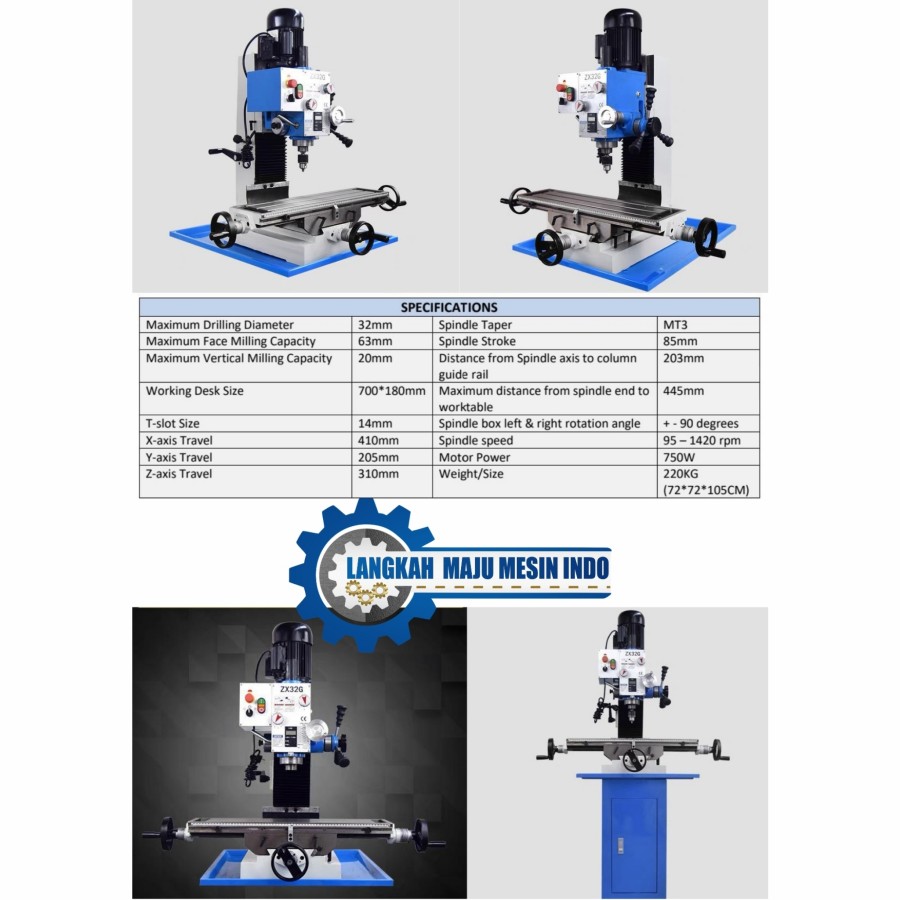

Technical Specifications
Detailed performance metrics and capabilities
Maximum Drilling Diameter
32mm
Maximum Face Milling Capacity
63mm
Maximum Vertical Milling Capacity
20mm
Working Desk Size
700*180mm
T-slot Size
14mm
X-axis Travel
410mm
Y-axis Travel
205mm
Z-axis Travel
310mm
Spindle Taper
MT3
Spindle Stroke
85mm
Distance from Spindle axis to column guide rail
203mm
Max distance from spindle end to worktable
445mm
Spindle box left & right rotation angle
+- 90 degrees
Spindle Speed
95-1420rpm
Motor Power
750W
Weight/Size
220 KG / (72*72*105 CM)
