Mesin Milling Drilling Bor Frais Vertical Swivel Meja Berputar ZX50C
LMM-MILLINGBORFRAIS-05
Price:
IDR 30.000.000
Featured
Gallery
Machine
Bubut
6
Views
2026
Model Year
4
Features
Overview

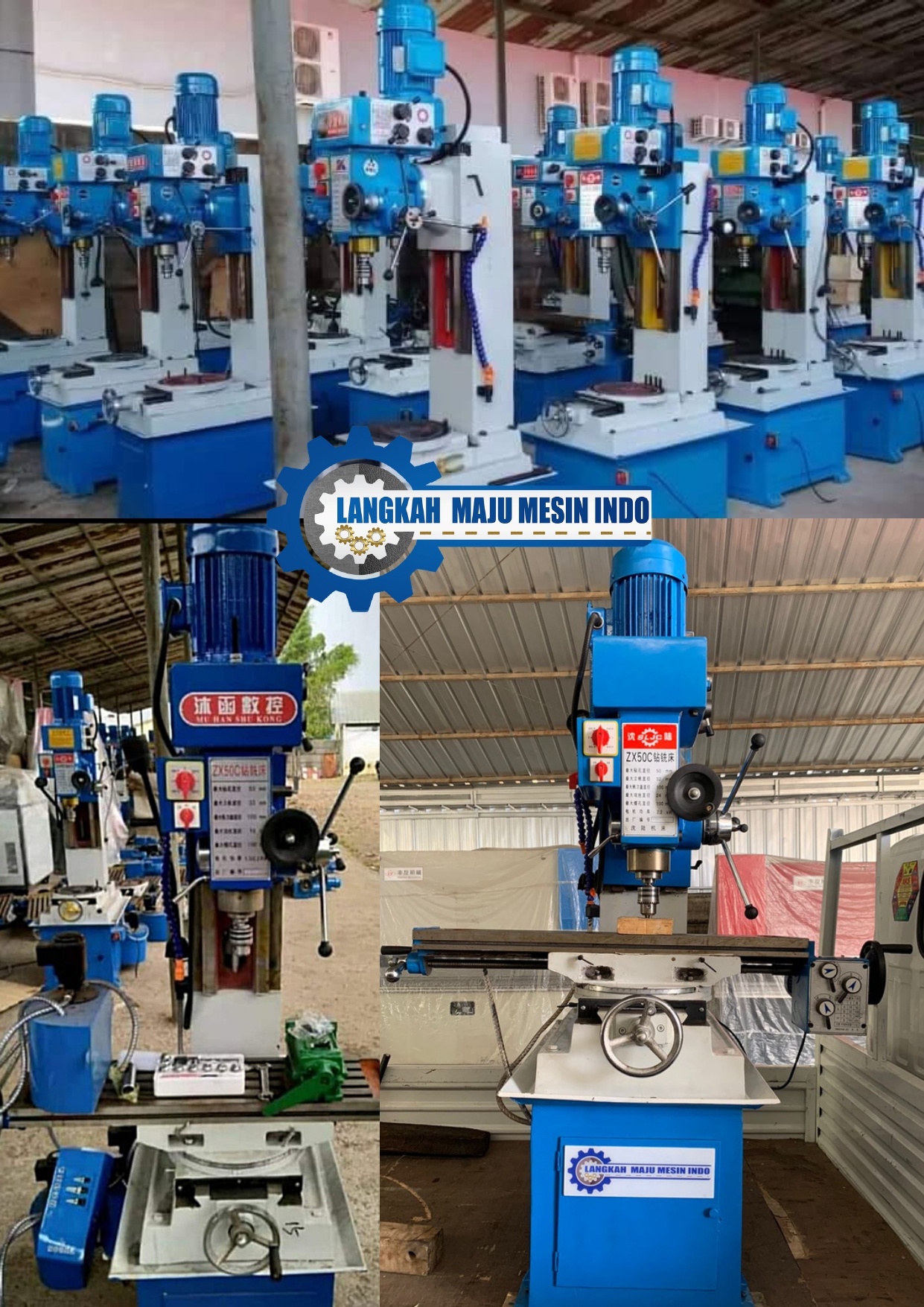

The ZX50C Milling and Drilling Machine with Swivel Table is a versatile industrial machine that combines drilling and milling functions in a single vertical unit. Its key feature is its swivel table, which allows for complex angle or radius machining without moving the workpiece. It is designed to handle a wide range of metal materials with high precision.

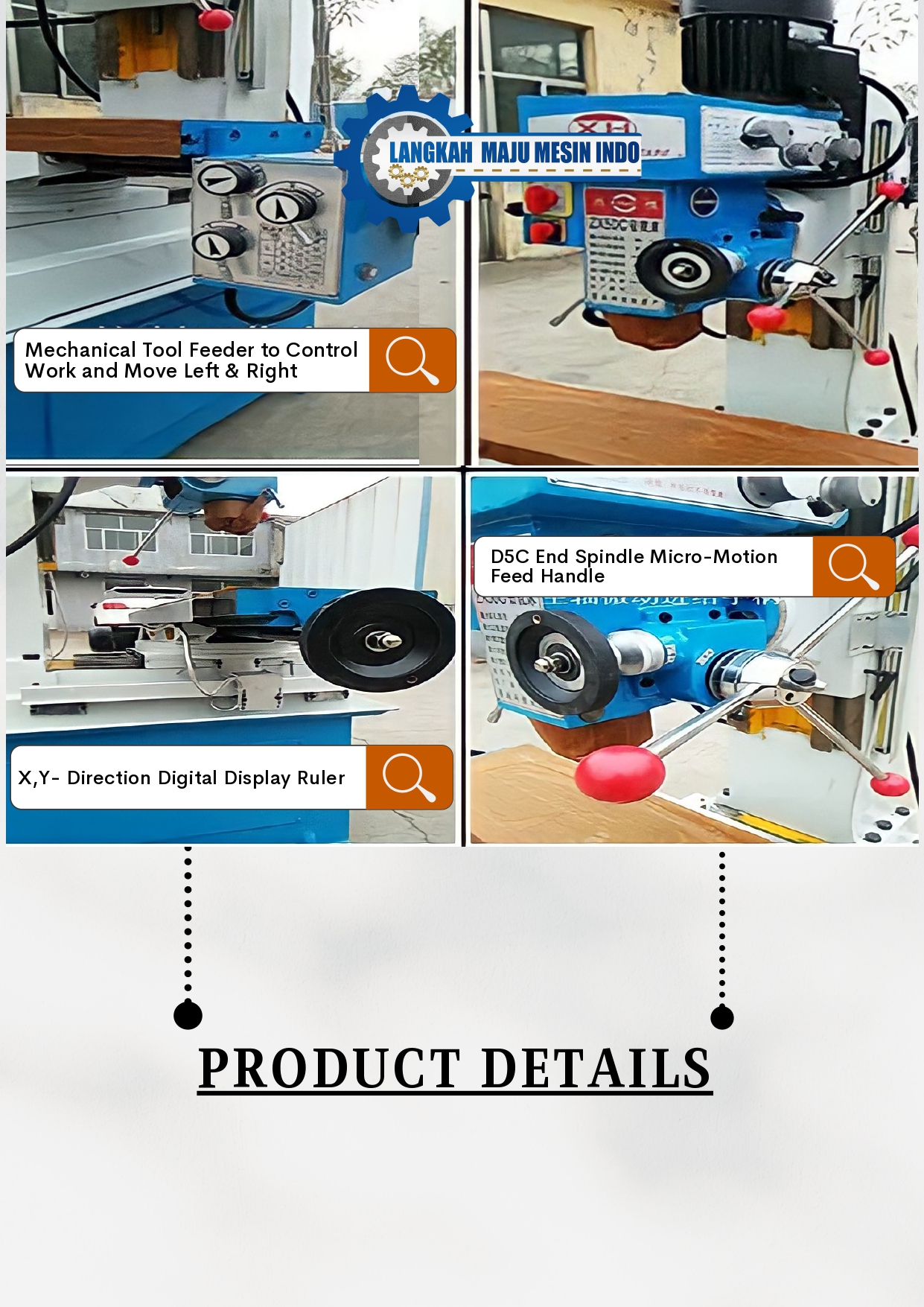

Key Features
Vertical Swivel Head
Swivel Table
Dual Function
Production Capacity
Key Specifications
Drilling Capasity.:
50mm
Max. Drilling Diameter.:
50mm
Max. End Milling Capacity.:
100mm
Max. Face Milling Capacity.:
25mm
Price
IDR 30.000.000
*Price may vary based on configuration and location

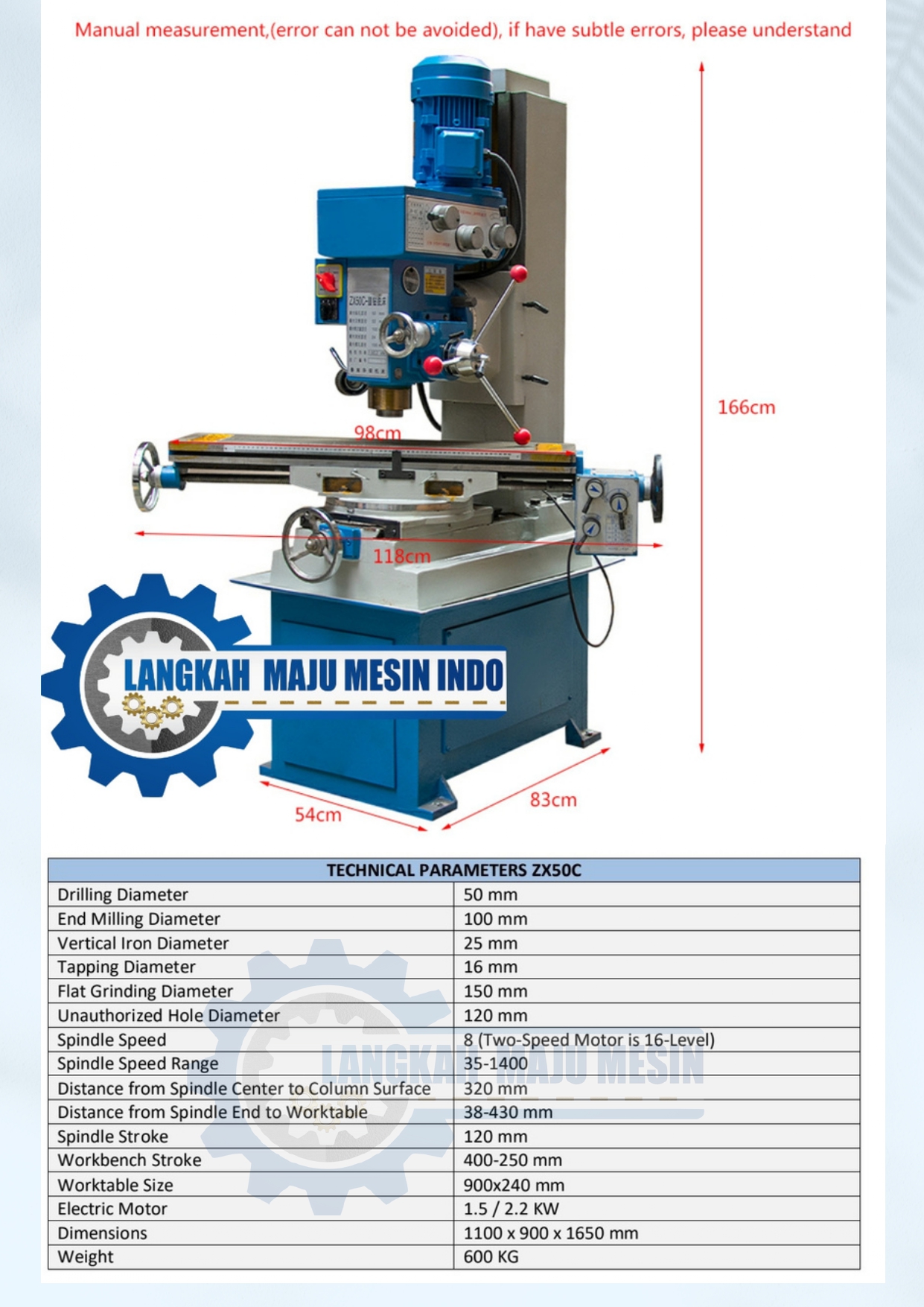

Technical Specifications
Detailed performance metrics and capabilities
Drilling Capasity.
50mm
Max. Drilling Diameter.
50mm
Max. End Milling Capacity.
100mm
Max. Face Milling Capacity.
25mm
Spinde Taper.
MT4 / ISO 30
Spindle Speed Range.
( 8 step ) 115 - 1750 Rpm
Spindle Travel.
120mm
Max. Distance From Spindle Nose to Worktable 380mm
Table Size
900 x 240mm
Table Travel.
600 x 230 x 380mm
Main Motor Power.
1.5 Kw
N.W / G.W.
500Kg
