Mesin Milling SM4 - T4 (NT30) Turret Milling Machine SM4
LMM-MILLINGBORFRAIS-01
Price:
IDR 105.000.000
Gallery
Machine
Bubut
7
Views
2026
Model Year
15
Features
Overview

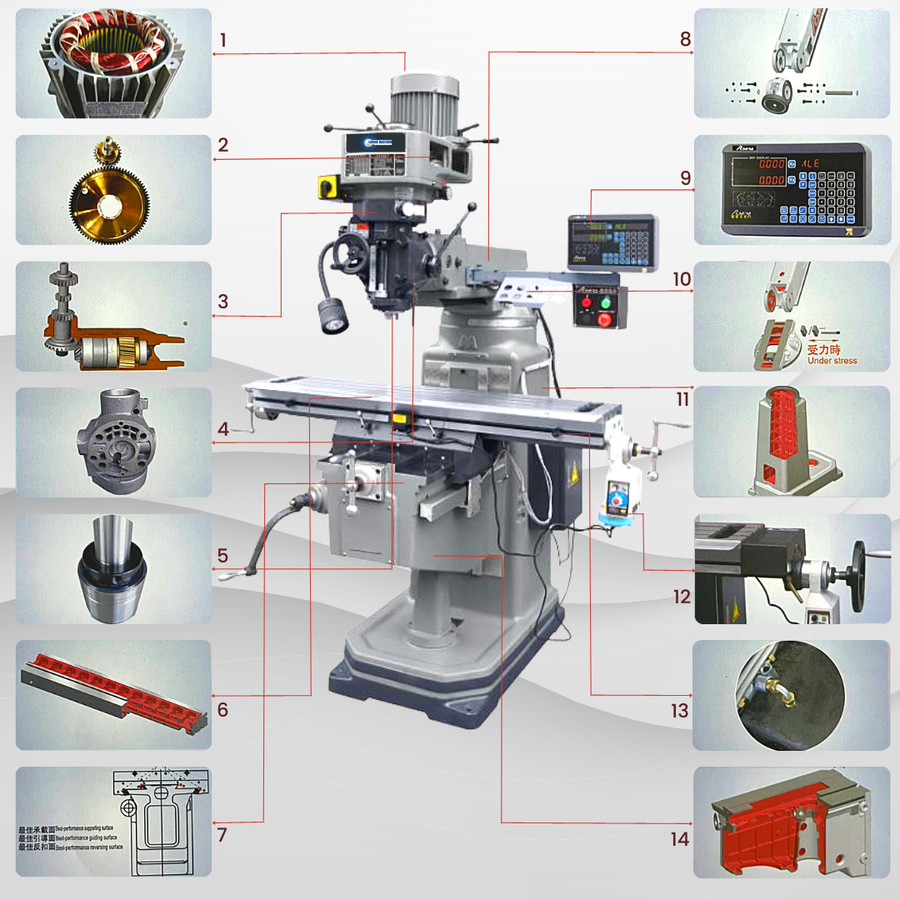

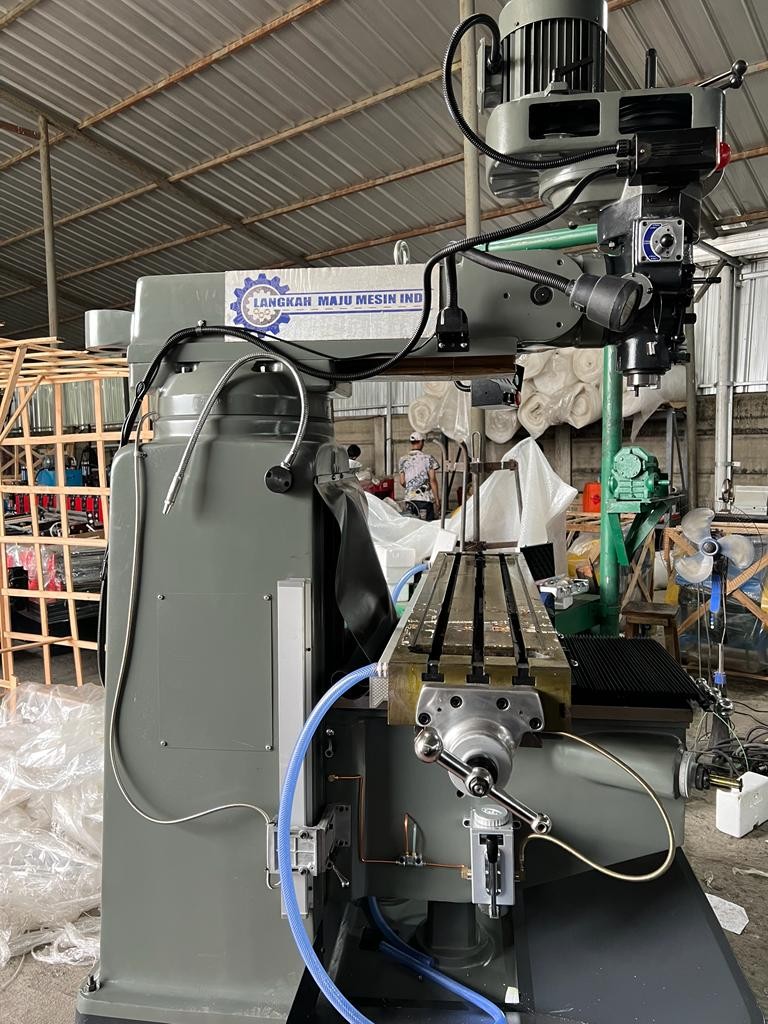

The SM4-T4 (NT30) Turret Milling Machine is a vertical, turret-type milling machine widely used in the manufacturing and precision machining industries. It boasts operational flexibility, particularly thanks to the NT30 spindle, which allows for stable installation of various cutting tools.
Key Features

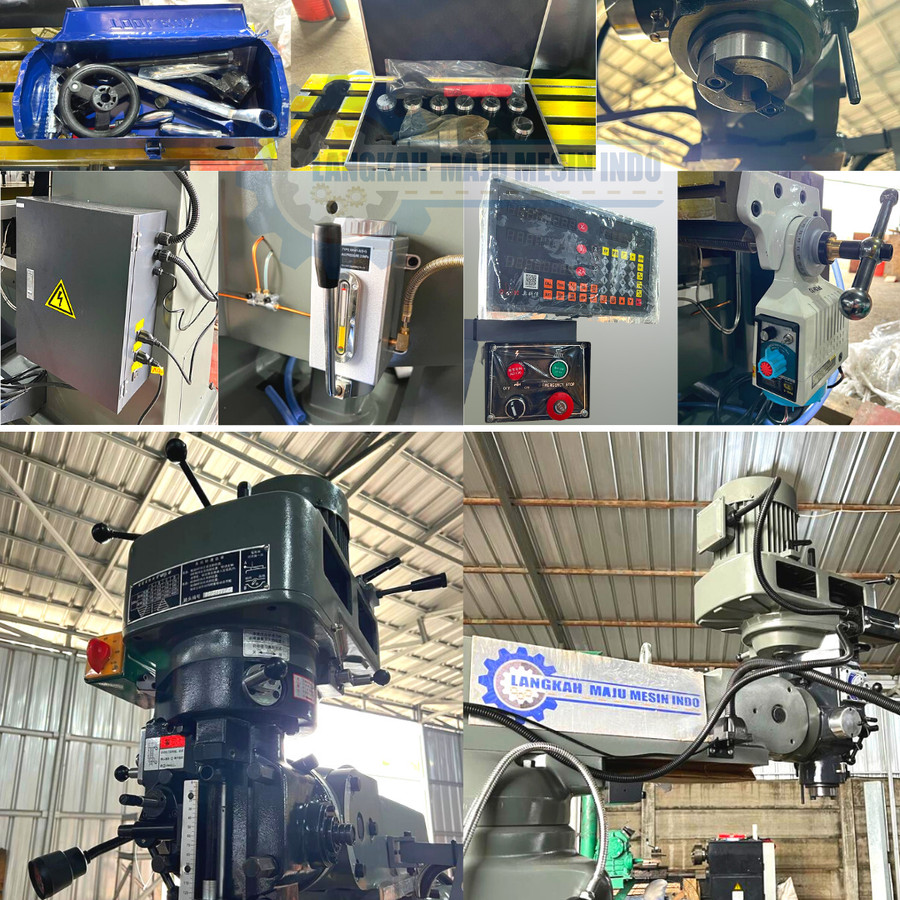

accessories obtained
X, Y Axis Optical Ruler
Z Axis Optical Ruler
X-Axis Tool Feeder
Y-Axis Tool Feeder
6 inch flat nose pliers
Key Specifications
Table Size:
1270 x 254 x 90 mm
Table Load:
300 Kg
Left and Right Travel (X):
780 mm
Front and rear Travel (Y):
380 mm
Price
IDR 105.000.000
*Price may vary based on configuration and location

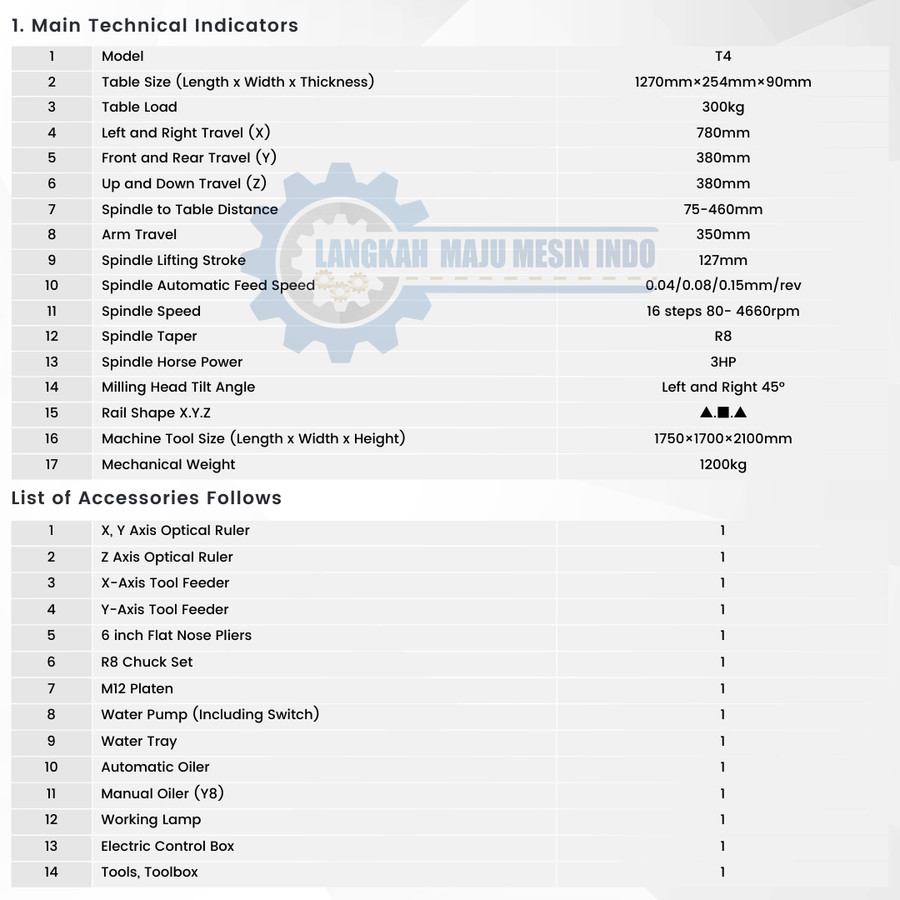

Technical Specifications
Detailed performance metrics and capabilities
Table Size
1270 x 254 x 90 mm
Table Load
300 Kg
Left and Right Travel (X)
780 mm
Front and rear Travel (Y)
380 mm
Up and Down Travel (Z)
380 mm
Spindle to Table Distance
75-460 mm
Arm Travel
350 mm
Spindle Lifting Stroke
127 mm
Apindle Automatic Feed Speed
0.04/0.08/0.15mm/rev
Spindle Speed
16 steps 80-4660rpm
Spindle Taper
R8
Spindle Horse Power
3HP
Miling Head Tilt Angle
Left and Right 45 (derajat)
Machine Dimension
1750 x 1700 x 2100 mm
Mechanical Weight
1200 Kg
