Mesin Milling SM5 NT40 Turret Milling Machine 5HP Milling Mesin
LMM-MILLINGBORFRAIS-04
Price:
IDR 100.000.000
Gallery
Machine
Bubut
4
Views
2026
Model Year
7
Features
Overview

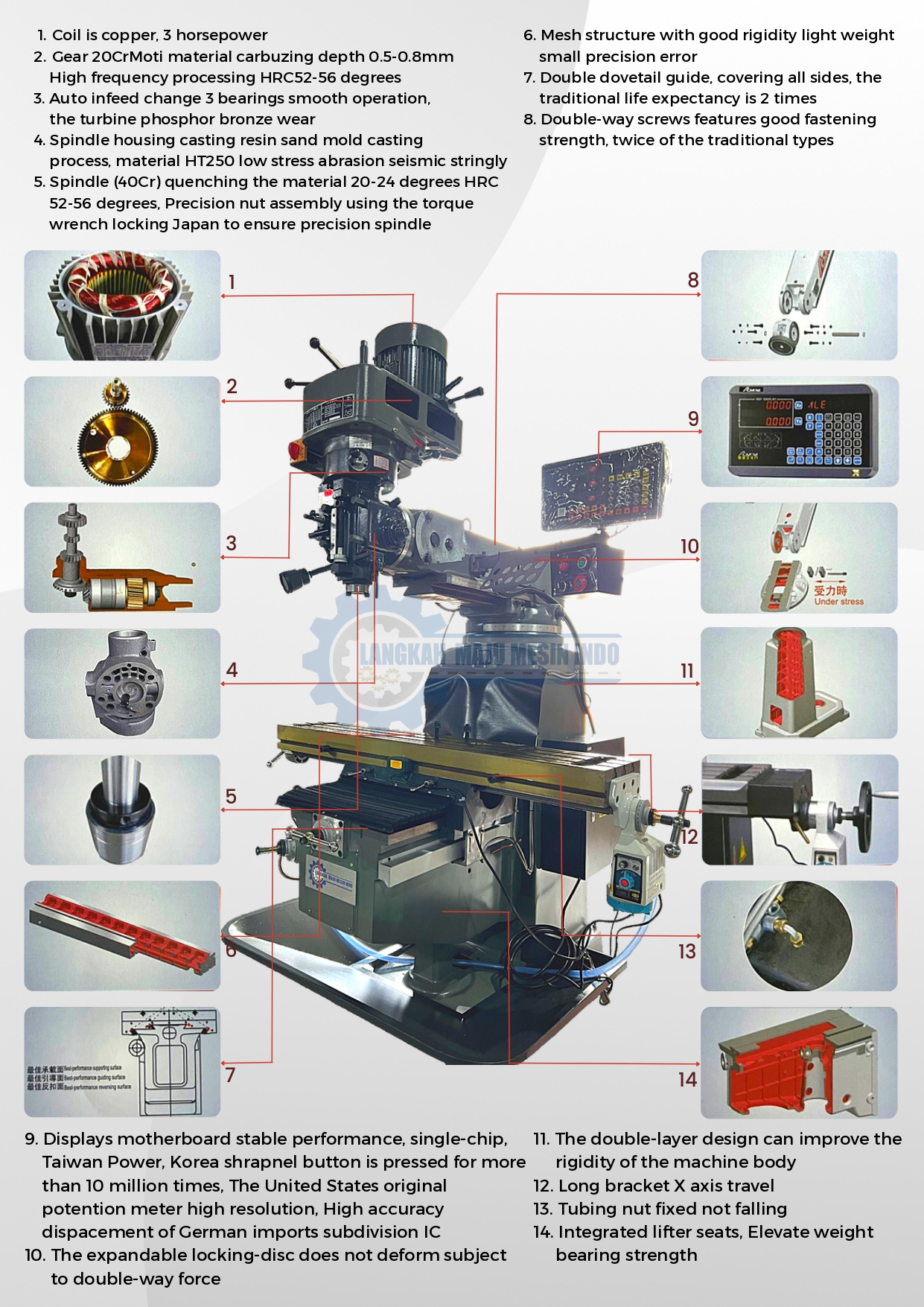

The SM5 NT40 Turret Milling Machine is a 3 HP vertical/universal milling machine designed for lathe workshops and manufacturing industries in the production of molds and precision components. This machine features a flexible rotating head and a stable worktable.
Key Features
NT40 OZ25 Chuck Set
Electric Box Controller
Working Lamp
Water Pump
Manual Oiler (Y8)
Water Tray
Key Specifications
Table Size:
1370 x 280 mm
Table Load:
300 Kg
Left and Right Travel (X):
730 mm
Front and Rear Travel (Y):
400 mm
Price
IDR 100.000.000
*Price may vary based on configuration and location

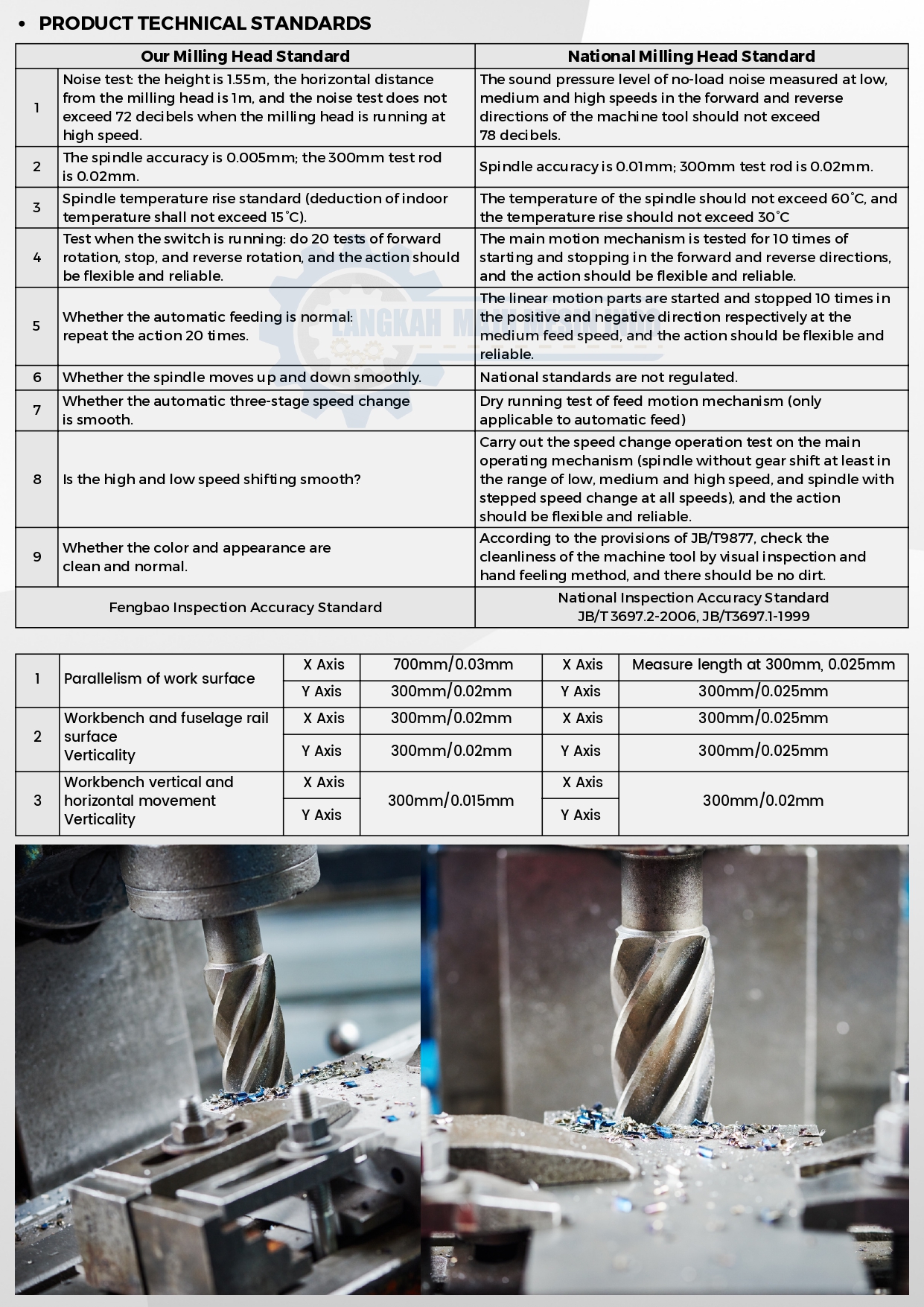

Technical Specifications
Detailed performance metrics and capabilities
Table Size
1370 x 280 mm
Table Load
300 Kg
Left and Right Travel (X)
730 mm
Front and Rear Travel (Y)
400 mm
Up and Down Travel (Z)
380 mm
Spindle to Table Distance
80-460 mm
Arm Travel
490 mm
Spindle Speed
16 steps 80-5440 rpm
Spindle Taper
NT40
Spindle Horse Power
5HP
Dimension Machine
1850 x 2000 x 2250 mm
Mechanical Weight
1500 Kg
