Mesin ZAY7045FG Heavy Bench Drilling & Milling Machine
LMM-MILLINGBORFRAIS-03
Price:
IDR 38.000.000
Gallery
Machine
Bubut
6
Views
2026
Model Year
4
Features
Overview

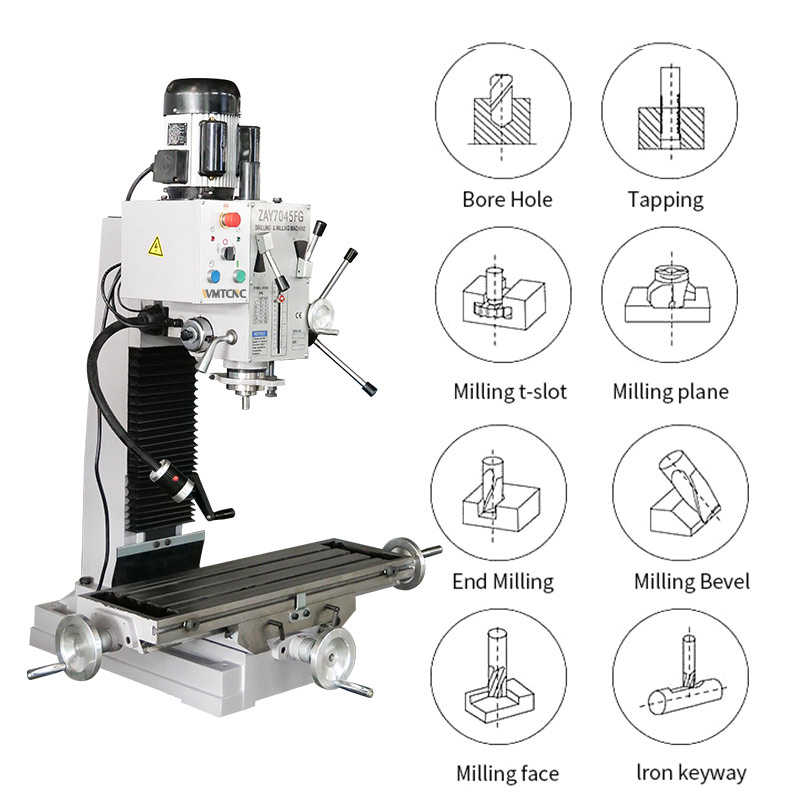

The ZAY7045FG Heavy Bench Drilling & Milling Machine is a bench-type drilling and milling machine designed for medium to heavy metal work with a maximum drilling capacity of 45 mm. This machine is a multi-function solution that combines drilling, milling, tapping, boring, and reaming capabilities in one space-saving unit.

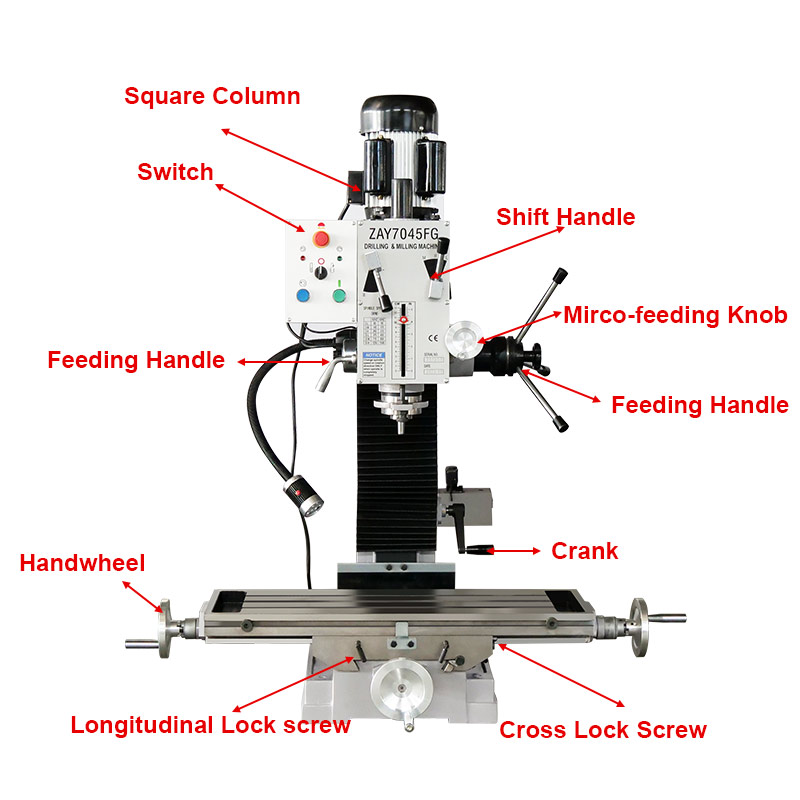

Key Features
Gear-Driven Head
Swivel Head
Square Column
Auto-Feeding
Key Specifications
Maximum drilling diameter:
45mm
Spindle taper:
MT4
Maximum face milling capacity:
80mm
Spindle Stroke:
130mm
Price
IDR 38.000.000
*Price may vary based on configuration and location
Technical Specifications
Detailed performance metrics and capabilities
Maximum drilling diameter
45mm
Spindle taper
MT4
Maximum face milling capacity
80mm
Spindle Stroke
130mm
Maximum vertical milling capacity
32mm
The distance between the spindle axis and the column guide
260mm
Worktable size
800*240mm
Maximum distance from spindle end to worktable surface
450mm
T-slot size 18mm left and right rotation angle of headstock
+-90 degrees
X-axis travel
580mm
Spindle Speed
80-1250 rpm
Y axis travel
220mm
Motor Power
750W
Z axis travel
450mm
Weight/Size
320KG/86*86*118cm
